Product information

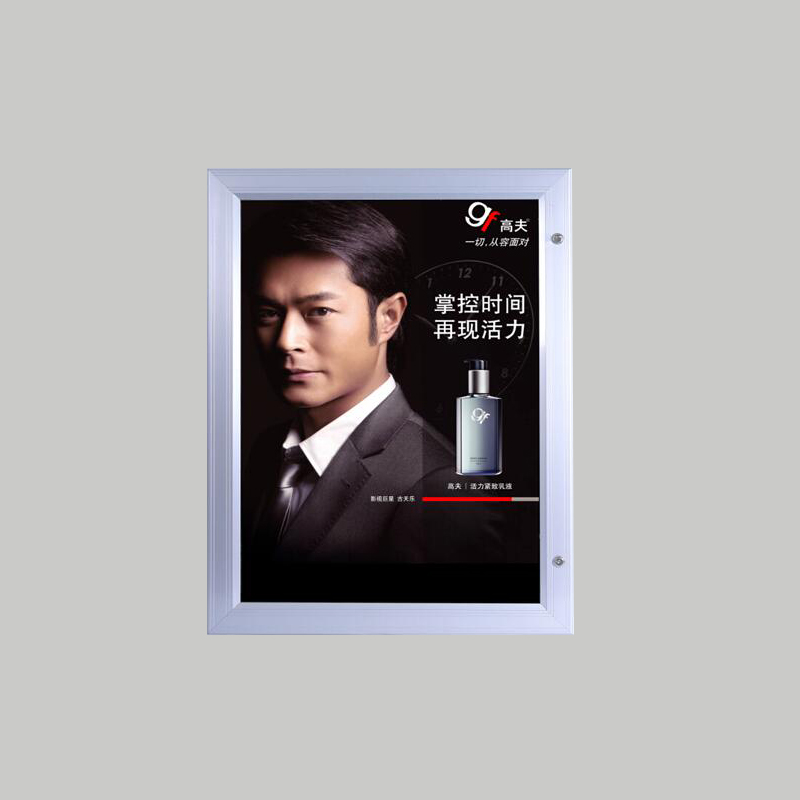

Advertising Display Light Box


Basic Information:



ITEMA0A1A2A3
Frame Size (mm)1294*946*52946*699*52699*525*52525*420*52
Viewing Size (mm)1162*814814*567573*399393*270
Image Size (mm)1189*841841*594594*420420*297
Gross Weight18KG11KG7KG5KG
Average Brightness
(no graphic)
2500LUX2500LUX2500LUX2500LUX
Higher brightness available
Power Consumption40W25W11W7W
Input VoltageDC12V/24V
LED3014/4014/2835/5630 SMD
C.C.T6000~6500K
Working Tem.-20°C~50°C
Warranty1~2 years
Max. Size2000x1000mm
Any customized under the Max. size is available

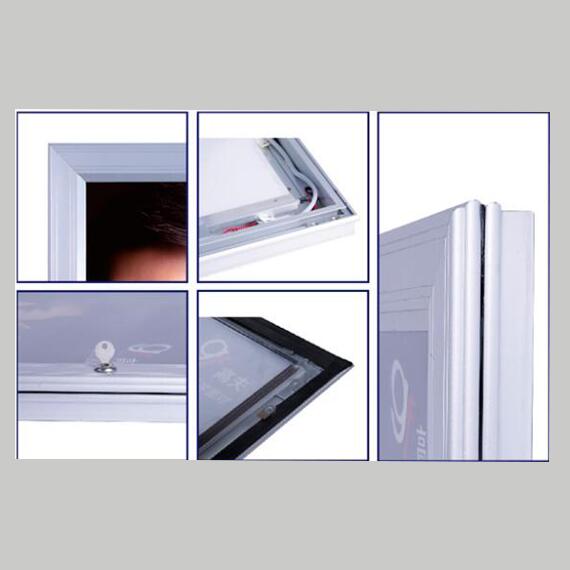

Features:


Profile: 6063 extruded aluminum 52mm depth

Finish: Anodizing silver/black painted

Light source: 3014/4014/2835/5630 SMD LED with 50,000hrs lifespan and LM80 listed

Power supply:  Internal power supply with CE list or Class2 power supply

LGP: 100% pure PMMA acrylic from Mitsubishi or equivalent supplier

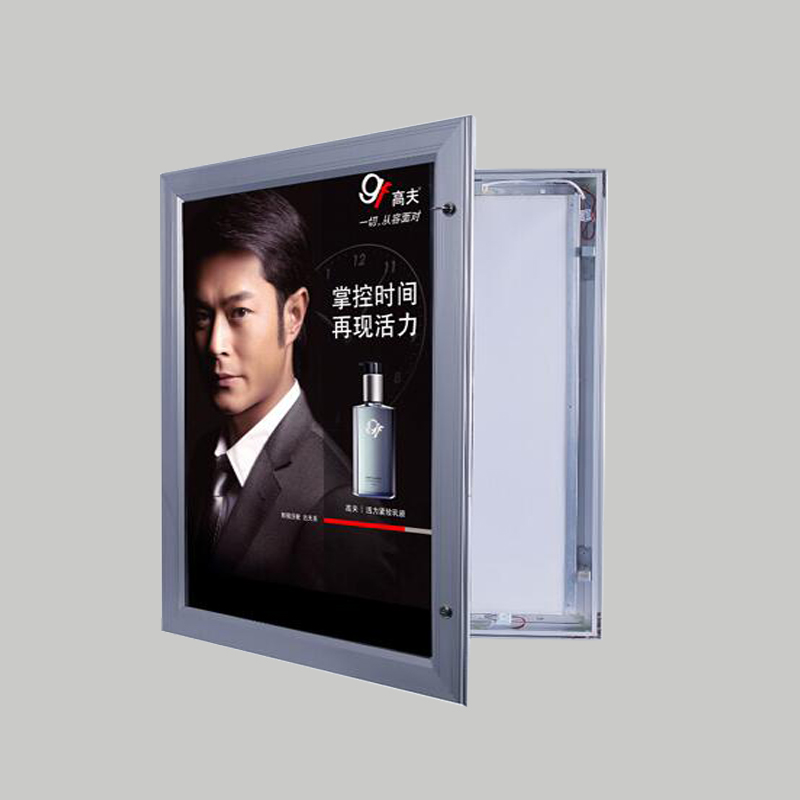

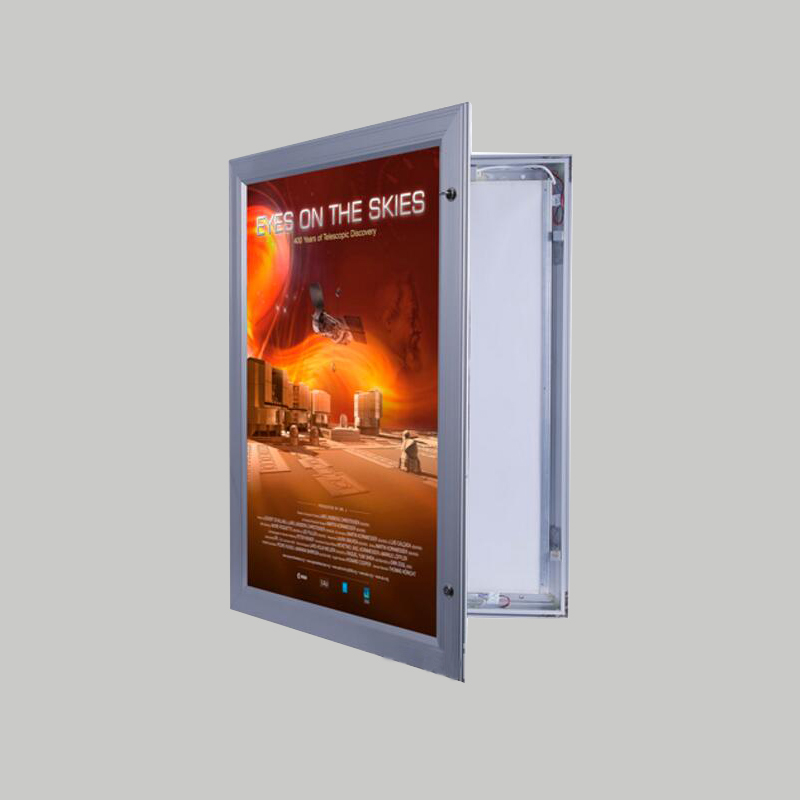

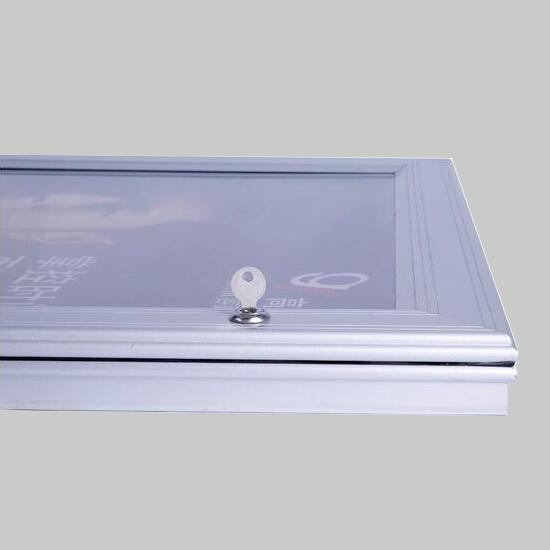

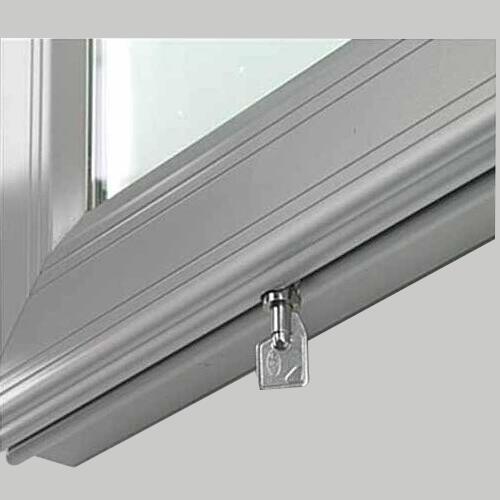

Frame style: lock open

Poster format: DIN A3 to A0 or customer size on request

Brilliant light spread provides advertising poster the best framework

Lower power consumption, energy saving,  70% off

High illumination and environment friendly

Easy to install and change the graphics

Installing types: wall mounting

Option: Single side only

Application: Indoor or outdoor

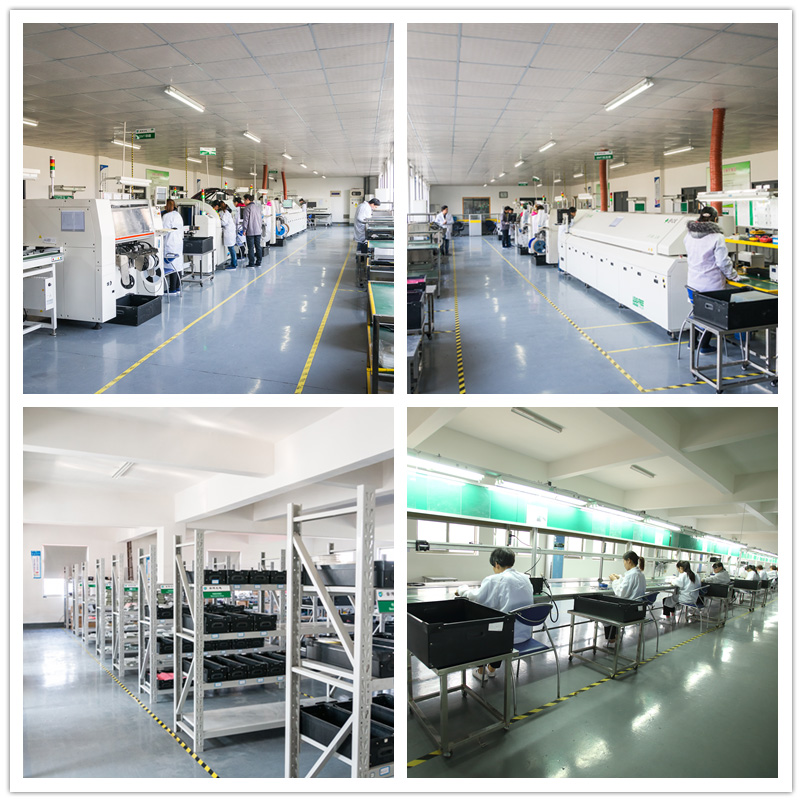

Factory:
